Athlegen Osteo Lift Series

$3,135.00
SKU:
ATH-OSTEO
Availability:
Courier Charges Apply
Shipping:
$0.01 (Fixed shipping cost)
Quantity:

Product Description

The Athlegen Osteo Lift Series

Athlegen have improved this product by using superior components and the latest maufacturing techniques. Manufactured in Australia for over 25 years.

The
Osteo Lift Series Treatment Table has been designed through consultation with the Australian Osteopathic Association (AOA). The Osteo's narrower adjustable head section allows excellent practitioner access.   New improved long life firm cushioning system provides superior patient comfort and yet is perfectly suited to sports massage, adjustments and manipulations.  A powerful German motor enables fast height adjustment with less wasted time during treatments

Priced from $3135.  Select the level of options you need - click to view our Osteo Options Explained

This is built to order: Allow 3 weeks

Table features include

  • Electric power height adjustment.
  • High quality german motor - high powered, quiet, fast, reliable
    and vibration free.
  • Heavy duty stainless steel footswitch
  • 8 pivot lifting arm mechanism, super strong with self lubricating
    nylon bushes to ensure smooth and quiet operation.
  • CFC free foam cushioning.
  • High density upholstery edges - foam is constructed with special
    firm edges, the cushioned upholstery top will maintain its shape
    and edge support longer than standard upholstery.
  • High quality protective coated vinyl with oil resistant properties;
    durable with a soft and comfortable feel.
  • Durable powder coated rust resistant frame.
  • Built to last with very low maintenance.
  • 3 year motor 10 yaer frame warranty
  • 610 mm bed

Table options include:

  • Face recess plug
  • Additional foot control switch
  • Width variations 550 mm or 660 mm
  • Upholstery upgrade
  • Cushioning Upgrade
  • Extended warranty upgrade
  • Narrow head section for full access
  • Prone armrest
  • Footrest extension with height control
  • Full lock down castor base

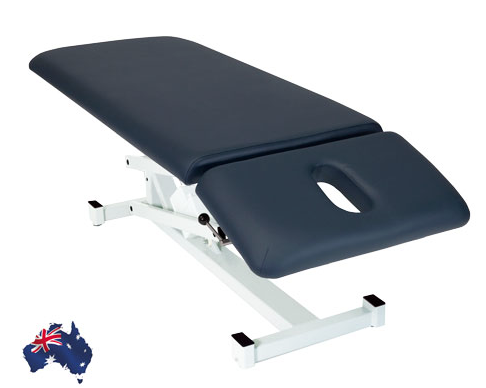

OSTEO PRO-LIFT BASICosteo-pro-lift-basic.png

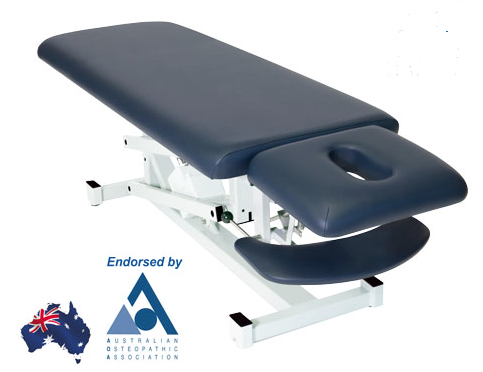

   OSTEO PRO-LIFT XL

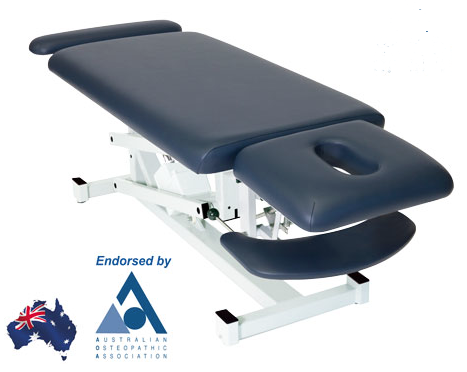

OSTEO MK II


Standard features

  • Dunlop® cushioning. Firm adjustment foam. Dunlop® Australia three layered, CFC free, polyurethane foam. Specifically designed for massage and osteopathic treatments.
  • High quality protective coated vinyl with oil resistant properties; durable, with a soft and comfortable feel.
  • Stainless steel footswitch made in Germany. Heavy duty, ergonomic, low profile,easy to use.
  • Length 1860mm









Standard features

  • Dunlop® cushioning. Firm adjustment foam. Dunlop® Australia three layered, CFC free, polyurethane foam. Specifically designed for massage and osteopathic treatments.
  • High quality protective coated vinyl with oil resistant properties; durable, with a soft and comfortable feel.
  • Stainless steel footswitch made in Germany. Heavy duty, ergonomic, low profile, easy to use.
  • Narrower headpiece for improved accessability
  • Prone armrest for increased client comfort
  • Length to 1860mm











Standard features

  • Extendable footrest. Allows you to extend the table length by 200 mm to 1960mm.
  • Adjustable height footrest. Enables greater flexibility when positioning patients.
  • Dunlop® cushioning. Firm adjustment foam. Dunlop® Australia three layered, CFC free, polyurethane foam. Specifically designed for massage and osteopathic treatments.
  • High quality protective coated vinyl with oil resistant properties;
    durable, with a soft and comfortable feel.
  • Stainless steel footswitch made in Germany. Heavy duty, ergonomic, low profile, easy to use.
  • Narrower headpiece - improved access
  • Prone armrest for increased client comfort



 OSTEO PRO-LIFT SPECIFICATIONS

  • Lift Motor Origin: Germany
    Force - Lift 10,000N
    Speed - Lift 11 mm sec
  • Upholstery covering
    PVC tested to AS 1441.11,
    AS 1530.3, AS 4088.1
  • Cushioning
    Firm adjustment foam.
    Dunlop® Australia three layered,
    CFC free, polyurethane foam.
    Firm finish; overall thickness 60 mm.
  • Working height range
    Min: 493 mm to Max: 984 mm
  • Safe working load
    220 kg
  • Footswitch
    Pneumatic; low profile 20 mm
  • Power requirements
    240 VAC @ 3.4 AMPS

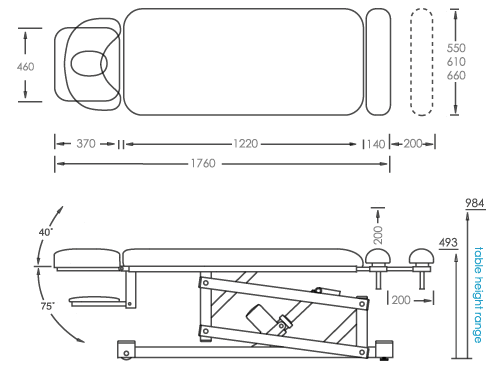

  • Table Length
    1760 mm.
    1960 mm with the footrest fully extended

  • Shipping dimensions
  • 1930 mm x 730 mm x 720 mm
  • Shipping weight
    125 kg
  • Warranty
    Australia 15 years structural,
    5 years hardware, 3 years motor, and 1 year footswitch.

    Extended warranty available.
    Other countries upon request.





Anatomy of a Pro-lift table.

Take a closer look at why Athlegen Pro-lift tables are the preferred choice for many professionals both in Australia and internationally. We have removed the upholstery to allow you to see all the structural components that make the Athlegen Pro-Lift table a proven performer.




Why do so many professionals choose Athlegen?

(1) Adjustable angle head section.

  • Heavy duty design.
  • Engineered to easily accommodate the repetitive demands of the busiest practice.
(2) Com lock mechanism (on manually adjustable table sections).
  • Heavy duty 12.7 mm stainless steel shafts
  • Operated by a lever that automatically locks the table section in place upon release.
  • Excellent security, support and rigidity.
(3) Control lever
  • Beautifully crafted in stainless steel.
  • Large size plastic knob that is comfortable to grip and easy to use.
(4) Electric height adjustment by a commercial grade actuator.
  • Made in Germany.
  • Reliable and vibration free performance.
  • Powerful 10,000 n motor provides fast height adjustment resulting in less time wasted during treatments.
(5) Durable powder coated rust resistant frame.
  • All fabricated steel components are sandblasted to remove any surface impurities and improve paint adhesion.
  • Phosphate pre-treatment process to provide superior resistance to corrosion and further improves paint adhesion.
  • Final coats are electrostatically applied and oven baked for a hard durable finish.

(6) Stability and manoeuvrability: The standard base.

  • Includes concealed in-line wheels and floor levelling feet.
(7) The optional castor base.
  • Features locking castors, designed by us, with rubber tread and steel bearings and are one of the highest quality available.
(8) Detachable power cord.
  • The motor is wired into a standardized I.E.C. 60320 connector with a detachable power cord.
  • Because the power cord is not hard wired it is easy and inexpensive to replace if damaged.
(9) Smooth quiet operation - a proven performer
  • Each of the eight Pro-lift pivot joints is constructed using a special engineering grade of self lubricated plastic.
  • Pivot bolts are high tensile steel
  • Durable and silent pivot lift design.
  • Well proven over 20 years and more than 30,000 treatment tables.
(10) Engineered to last and to be a pleasure to use.
  • Tables featuring extendable length footrests are fitted with rigid, solid 16 mm diameter stainless steel slider shafts.
  • Designed to slide through nylon bushes for an easy,  smooth rattle free action.
(11) Superior frame fabrication.
  • Fabricated in our own Ballarat factory using certified Australian rolled structural grade steel.
  • Robotic welded for absolute precision and quality of welds.
  • Laser cut components and superior fabricating processes ensure high structural integrity and consistent repeatability of the final product


Warranty Information

Full Athlegen Warranty applies
